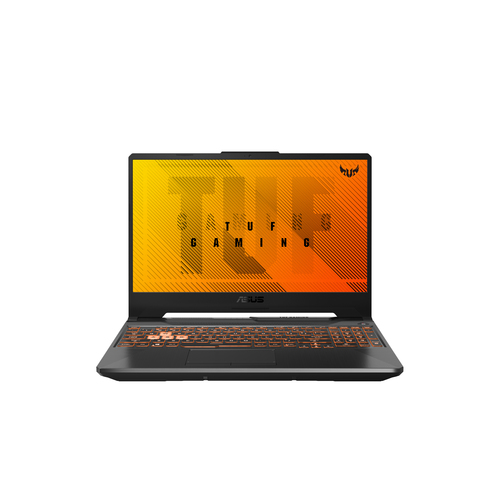

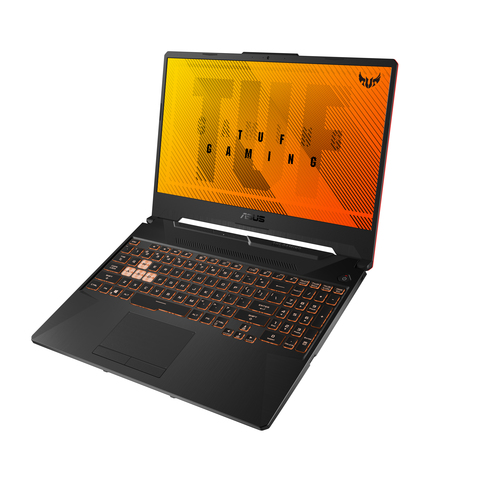

ASUS GAMING- FX506LH-HN0042W, 15.6-INCH, FHD (1920 X 1080) 16:9, INTEL® CORE™ I5-10300H PROCESSOR 2.5 GHZ (8M CACHE, UP TO 4.5 GHZ, 4 CORES), ( BACKLIT CHICLET KEYBOARD RGB, 8GB DDR4 SO-DIMM, 512GB M.2 NVME™ PCIE® 3.0 SSD, NVIDIA® GEFORCE® GTX 1650, 4GB GDDR6, WINDOWS 10 HOME, BONFIRE BLACK 90NR03U2M002L0

2,512,580.57

In stock

Product colourBlack
Product typeNotebook
Form factorClamshell
Market positioningGaming
Model year2021
BrandASUS
FamilyTUF Gaming
SeriesF15
Model nameFX506LH-HN004T
Part Number90NR03U2-M05280
Release Date01 March 2021
wws Sales Rep / Pre-sale Questions BUY NOW PAY LATER
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Compare

ASUS GAMING- FX506LH-HN0042W

ASUS GAMING- FX506LH-HN0042W

ASUS GAMING- FX506LH-HN0042W Specification

  • Display diagonal: 15.6 inch
  • Processor: i5-10300H 2.5 GHz
  • Internal memory: 8 GB DDR4-SDRAM
  • Graphics: NVIDIA GeForce GTX 1650
  • Storage: 512 GB SSD
  • Weight: 2.3 kg
Specifications

Operating System

Windows 10 Home – ASUS recommends Windows 11 Pro for business
Windows 10 Pro – ASUS recommends Windows 11 Pro for business
WITHOUT OS
Windows 11 Home
Endless
Device comes with Windows 10 and a free Windows 11 upgrade or may be preloaded with Windows 11.

Processor

Intel® Core™ i7-10750H Processor 2.6 GHz (12M Cache, up to 5.0 GHz, 6 cores)
Intel® Core™ i5-10300H Processor 2.5 GHZ (8M Cache, up to 4.5 GHz, 4 cores)
Intel® Core™ i7-10870H Processor 2.2 GHz (16M Cache, up to 5.0 GHz, 8 cores)
Intel® Core™ i5-10200H Processor, 2.4 GHz (8M Cache, up to 4.1 GHz, 4 cores)

Graphics

NVIDIA® GeForce® GTX 1650 Ti, 4GB GDDR6
NVIDIA® GeForce GTX™ 1650 , 4GB GDDR6
NVIDIA® GeForce® GTX 1660Ti, 6GB GDDR6

Display

15.6-inch, FHD (1920 x 1080) 16:9, anti-glare display, sRGB:62.5%, Adobe:47.1%, Refresh Rate:144Hz, Value IPS-level, Optimus
15.6-inch, FHD (1920 x 1080) 16:9, anti-glare display, sRGB:62.5%, Adobe:47.3%, Refresh Rate:60Hz, Value IPS-level, Optimus

Memory

8GB DDR4 SO-DIMM(2933MHz for i5-10300H/i7-10750H/i7-10870H), Max Capacity:32GB
16GB DDR4 SO-DIMM(2933MHz for i5-10300H/i7-10750H/i7-10870H), Max Capacity:32GB
8GB DDR4 SO-DIMM(2933MHz for i5-10300H/i7-10750H/i7-10870H) x 2, Max Capacity:32GB
16GB DDR4 SO-DIMM(2933MHz for i5-10300H/i7-10750H/i7-10870H) x 2, Max Capacity:32GB
4GB DDR4-2933 SO-DIMM, Max Capacity:32GB

Storage

512GB PCIe® 3.0 NVMe™ M.2 SSD
1TB 5400RPM 2.5″ SATA HDD, 256GB PCIe® 3.0 NVMe™ M.2 SSD
1TB PCIe® 3.0 NVMe™ M.2 SSD
256GB PCIe® 3.0 NVMe™ M.2 SSD
1TB 5400RPM 2.5″ SATA HDD
1TB 5400RPM 2.5″ SATA HDD, 512GB PCIe® 3.0 NVMe™ M.2 SSD

I/O Ports

1x 3.5mm Combo Audio Jack
1x HDMI 2.0b
1x USB 2.0 Type-A
2x USB 3.2 Gen 1 Type-A
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / G-SYNC
1x USB 3.2 Gen 1 Type-C support DisplayPort™ / G-SYNC
(Device features only one Type-C port, at either Gen 2 or Gen 1 speeds, depending on model.)

Keyboard and Touchpad

Backlit Chiclet Keyboard 1-Zone RGB
Touchpad

Camera

720P HD camera

Audio

DTS software
Built-in array microphone
Built-in speaker
2-speaker system with Smart Amplifier Technology

Network and Communication

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.2 (*BT version may change with OS version different.)
Wi-Fi 6(802.11ax)+Bluetooth 5.2 (Dual band) 2*2;(*BT version may change with OS upgrades.)

Battery

48WHrs, 3S1P, 3-cell Li-ion
90WHrs, 4S1P, 4-cell Li-ion

Power Supply

ø6.0, 150W AC Adapter, Output: 20V DC, 7.5A, 150W, Input: 100~240V AC, 50/60Hz universal
ø6.0, 180W AC Adapter, Output: 20V DC, 9A, 180W, Input: 100~240V AC, 50/60Hz universal

Weight

2.30 Kg (5.07 lbs)

Dimensions (W x D x H)

35.9 x 25.6 x 2.47 ~ 2.49 cm (14.13″ x 10.08″ x 0.97″ ~ 0.98″)

Microsoft Office

1-month trial for new Microsoft 365 customers. Credit card required.
Office Home and Student 2019 included
WPS Office 30 days trial version
Office Home and Student
Microsoft Office Home & Business

Security

BIOS Administrator Password and User Password Protection
Kensington Security Slot™
Trusted Platform Module (Firmware TPM)

Included in the Box

TUF Gaming backpack
TUF Gaming Mouse M5
*Included accessories vary according to country and territory. Please check with your local ASUS retailer for details

Note

¹Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware (see https://www.microsoft.com/en-us/windows/windows-11-specifications).
