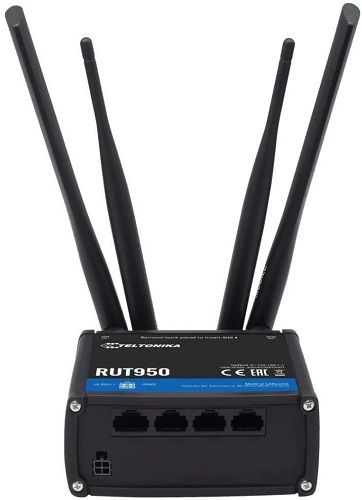

Teltonika RUT950 LTE 4G Router

The Teltonika RUT950 is a robust industrial LTE Cat 4 router engineered for mission-critical applications requiring dependable cellular connectivity in challenging environments. Combining high-performance 4G LTE networking with advanced industrial features, the RUT950 delivers enterprise-grade reliability for IoT deployments, remote monitoring systems, and industrial automation.

High-Speed LTE Connectivity

Powered by LTE Cat 4 technology, the RUT950 provides download speeds up to 150 Mbps and upload speeds up to 50 Mbps across multiple LTE frequency bands (B1/B3/B7/B8/B20/B28A) with 3G HSPA+ fallback support. The dual-SIM architecture with automatic failover ensures continuous connectivity—if the primary SIM connection fails, the router seamlessly switches to the backup SIM, guaranteeing zero downtime for critical operations.

Comprehensive Networking

Equipped with 4 Gigabit Ethernet LAN ports and 1 Gigabit WAN port, the RUT950 offers flexible wired connectivity options. The integrated Wi-Fi 802.11b/g/n access point (2.4 GHz, up to 150 Mbps) provides wireless connectivity supporting up to 100 concurrent users. Advanced networking features include VLAN support, stateful firewall, NAT, QoS, and traffic shaping for optimized network management.

Industrial-Grade Reliability

Built for harsh industrial environments, the RUT950 features an aluminum housing with fanless design and operates reliably in extreme temperatures from -40°C to 75°C (-40°F to 167°F). The router is DIN rail mountable for easy installation in control cabinets and supports wide-range DC power input (9-30V) with reverse polarity and overvoltage protection, ensuring safe operation in industrial power environments.

Advanced Industrial Features

The RUT950 includes RS232 and RS485 serial interfaces for connecting industrial equipment and legacy devices, enabling serial-to-IP conversion and remote serial device management. Dual digital inputs and dual relay outputs allow for remote monitoring and control of industrial processes. Integrated GPS provides location tracking and timing synchronization for mobile and stationary deployments.

Enterprise Security & VPN

Security is paramount with support for multiple VPN protocols including OpenVPN, IPsec, GRE, PPTP, and L2TP, enabling secure tunneling to corporate networks or cloud platforms. The stateful firewall, DMZ, port forwarding, MAC filtering, and DDoS protection safeguard your network from threats. SMS control and monitoring add an extra layer of remote management capability.

Remote Management Suite

The RUT950 is fully compatible with Teltonika’s Remote Management System (RMS), enabling centralized monitoring, configuration, and firmware updates for distributed router deployments. SNMP, TR-069, and RESTful API support provide integration flexibility with existing network management platforms. SMS and email alerts notify administrators of connection issues or threshold breaches.

Flexible Configuration & Protocols

Supporting a comprehensive range of protocols including HTTP, HTTPS, FTP, DNS, DHCP, NTP, and more, the RUT950 adapts to diverse networking requirements. Multiple WAN failover modes (backup, load balancing) and ping reboot functionality ensure maximum uptime. The intuitive WebUI provides easy configuration while maintaining advanced customization options for power users.

Applications: Industrial automation | SCADA systems | Remote monitoring | Digital signage | ATMs & kiosks | Retail POS | Smart city infrastructure | Transportation networks | Emergency backup connectivity

Certified and proven in thousands of deployments worldwide, the Teltonika RUT950 delivers the reliability, security, and flexibility demanded by professional industrial IoT applications.

—

Technical Specifications

Cellular Interface

• LTE Category: Cat 4
• Download Speed: Up to 150 Mbps
• Upload Speed: Up to 50 Mbps
• LTE FDD Bands: B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28A (700 MHz)
• 3G UMTS/HSPA+: B1 (2100 MHz), B8 (900 MHz)
• 2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz
• SIM: Dual-SIM (Mini-SIM, 2FF) with automatic failover
• Antenna Connectors: 2x SMA female (cellular)

Wi-Fi

• Standard: IEEE 802.11b/g/n
• Frequency: 2.4 GHz
• Data Rate: Up to 150 Mbps
• Security: WEP, WPA, WPA2, WPA3
• Max Clients: 100 concurrent users
• Modes: Access Point, Station, Hotspot
• Antenna: 1x RP-SMA female connector

Ethernet

• LAN Ports: 4x Gigabit Ethernet (10/100/1000 Mbps, RJ45)
• WAN Port: 1x Gigabit Ethernet (10/100/1000 Mbps, RJ45)
• Auto MDI/MDIX: Yes
• Link Speed: Auto-negotiation

Serial Interface

• RS232: 1x DB9 male connector
• Baud rate: 50 – 921,600 bps
• Data bits: 7, 8
• Stop bits: 1, 2
• Parity: None, Even, Odd, Mark, Space
• RS485: 2-wire, half-duplex
• Terminal block connector
• Same baud rate and configuration as RS232
• Modes: Serial over IP, Modbus gateway, console access

Digital I/O

• Digital Inputs: 2x isolated digital inputs
• Voltage range: 0-30V DC
• Logic low: 0-3V
• Logic high: 10-30V
• Relay Outputs: 2x relay outputs
• Contact rating: 1A @ 50V DC
• Type: SPDT (Single Pole Double Throw)

GPS

• Receiver: Integrated GPS module
• Accuracy: 2.5m CEP (Circular Error Probable)
• Sensitivity: -148 dBm (acquisition), -165 dBm (tracking)
• Protocols: NMEA 0183
• Antenna: Active GPS antenna via SMA connector (sold separately)
• Time to First Fix: Cold start <35s

Power

• Input Voltage: 9-30V DC (12/24V nominal)
• Connector: 4-pin terminal block (power + ground)
• Power Consumption:
• Idle: <3W
• Average: 5-8W
• Peak: <12W
• Protection: Reverse polarity, overvoltage, overcurrent

VPN & Security

• VPN Protocols: OpenVPN, IPsec, GRE, PPTP, L2TP, DMVPN, Wireguard
• VPN Throughput: Up to 20 Mbps (OpenVPN), 50 Mbps (IPsec)
• Firewall: Stateful packet inspection (SPI)
• Security Features:
• NAT, PAT, port forwarding
• DMZ, MAC filtering
• DDoS protection
• Access control lists (ACL)
• VLAN (802.1Q)
• SSH, HTTPS access

Networking Features

• Routing: Static routing, dynamic routing (RIP, OSPF, BGP)
• DHCP: Server, client, relay
• DNS: Client, dynamic DNS
• QoS: Traffic shaping, bandwidth control
• Failover: Automatic WAN failover, load balancing
• Protocols: TCP/IP, UDP, HTTP, HTTPS, FTP, SMTP, NTP, Telnet, SSH

Management

• RMS (Remote Management System): Cloud-based centralized management
• Web Interface: HTTP/HTTPS WebUI
• CLI: SSH, Telnet console access
• API: RESTful API, JSON-RPC
• SNMP: v1, v2c, v3
• TR-069: CWMP (CPE WAN Management Protocol)
• SMS Control: Remote configuration and reboot via SMS
• Monitoring: Email/SMS alerts, syslog, event logging
• Firmware Updates: OTA (Over-The-Air), WebUI upload

Physical Specifications

• Housing: Aluminum alloy
• Cooling: Fanless (passive cooling)
• Mounting: DIN rail, wall mount
• Dimensions: 104 x 85 x 30 mm (4.1 x 3.3 x 1.2 in)
• Weight: 350g (12.3 oz)
• LED Indicators:
• Power
• Mobile signal strength (5 LEDs)
• Ethernet link/activity
• Wi-Fi status
• System status

Environmental

• Operating Temperature: -40°C to 75°C (-40°F to 167°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 10% to 90% non-condensing
• Vibration: IEC 60068-2-6 (10-150 Hz, 1.5mm amplitude)
• Shock: IEC 60068-2-27 (15G, 11ms duration)

Certifications & Standards

• CE: EN 301 511, EN 301 908-1/2/13, EN 300 328
• FCC: Part 15, Part 22, Part 24
• RoHS: Compliant
• REACH: Compliant
• EMC: EN 301 489-1/-52
• Safety: EN 60950-1
• Automotive: E-Mark (E1)
• Carrier Certifications: Varies by region

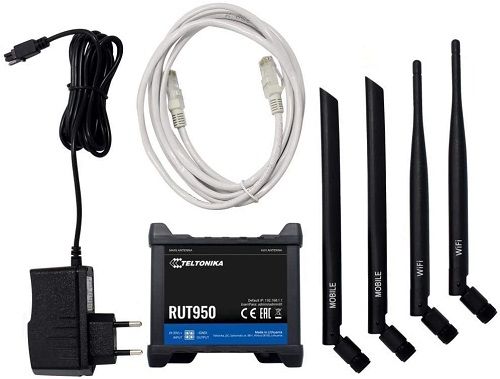

Package Contents

• 1x RUT950 LTE Router
• 1x 4-pin power terminal block connector
• 1x 6-pin I/O terminal block connector
• 1x DIN rail mounting kit
• 2x LTE antennas (SMA)
• 1x Quick Start Guide
• 1x Warranty card

Warranty & Support

• Warranty: 2 years limited hardware warranty
• Technical Support: Email, phone, online knowledge base
• Firmware: Regular updates and security patches
• Documentation: User manual, configuration examples, API documentation

Optional Accessories

• External LTE antennas (various gains)
• Active GPS antenna
• RS232/RS485 cables
• Power supplies (12V/24V DC adapters)
• Pole/wall mounting kits
• Surge protectors
