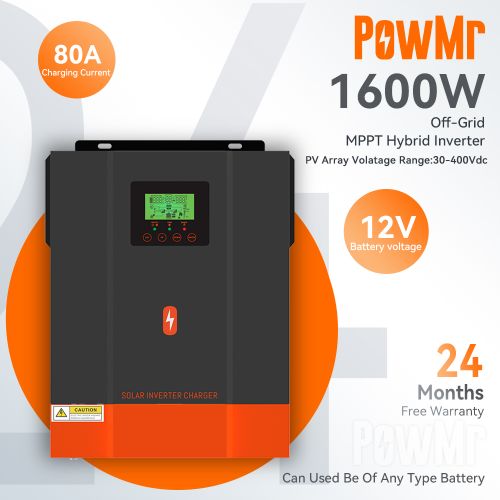

PowMr 1600W 80A MPPT Hybrid Solar Inverter 12vdc To AC 230V

Product details
PowMr 2.0kva/1600W Hybrid Solar Inverter 230Vac PV Start Voltage 30Voc Built In 80A MPPT Solar Charge Controller 50/60Hz Auto Pure Sine Wave Inverter 12vdc

Note:This is PowMr’s latest hybrid inverter, its biggest feature is that the solar panel starting voltage only needs 30Voc,The battery must be connected,The lower start-up voltage means that the cost of setting up a solar system can be greatly reduced,if you are interested in this product, you can contact us at any time

Features
1.Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal computers via LCD setting
3.Configurable battery charging current based on applications via LCD setting
4.Configurable AC/Solar Charger priority via LCD setting
5.Compatible to mains voltage or generator power
6.Auto restart while AC is recovering
7.Overload/ Over temperature/ short circuit protection
8.Smart battery charger design for optimized battery performance
9.Cold start function
10WIFI/GPRS(Option)
11.Can connect to lithium battery

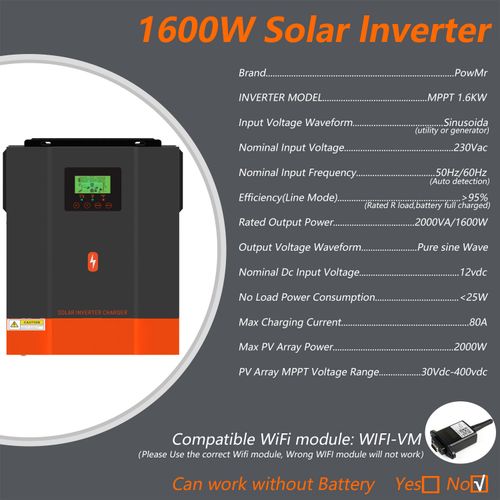

INVERTER MODEL：POW-HVM2H-12V-N
Input Voltage Waveform：Sinusoidal (utility or generator)
Nominal Input Voltage：230Vac
High Loss Voitage：280Vac+7V
High Loss Return Voltage：270Vac+70V
Max AC Input Voltage：300Vac
Nominal Input Frequency：50Hz/60Hz(Auto detection)
Output Short Circuit Protection：>93%
Efficiency (Line Mode)：Circuit Breaker
Transfer Time：10ms

Rated Output Power:2000VA/1600W
Output Voltage Waveform:Pure Sine Wave
Dutput Voltage Regulation:230Vac士5%
Output Frequency：50Hz
Peak Efficiency：94%
Overload Protection：5s@>150% load; 10s@ 100%~150% load
Surge Capacity；3200w *5seconds
Nominal DC Input Voltage:12Vdc
Cold start Voltage:11.5v

INVERTER MODEL:POW-HVM2H-12V-N
Charging Algorithm:3-Step
AC Charging Current (Max):60A
Floating Charging Voltage：13.5vdc

Max.PV Array Power：2000W
Nominal PV Voltage:240Vdc
PV Array MPPT Voltage Range：30-400Vdc
Max. PV Array Open Circuit Voltage：400vdc
Max(AC+Solar)Charging current:80A
