Intel NUC 11 Pro Kit NUC11TNKi5 Mini Desktop Computer

Intel NUC 11 Pro Kit NUC11TNKi5 Mini Desktop Computer

The Intel NUC 11 Pro Kit NUC11TNKi5 represents Intel’s premium mini desktop platform, combining 11th Generation Intel Core processing power, advanced connectivity, and professional features in an incredibly compact form factor perfect for modern workspaces and specialized applications.

This barebones kit provides the foundation for a powerful yet space-efficient workstation, digital signage solution, or compact server, offering desktop-class performance with enterprise-grade management capabilities.

Key Features

• Intel Core i5-1135G7 quad-core processor (11th Gen)
• Intel Iris Xe Graphics (integrated)
• Support for up to 64GB DDR4-3200 memory
• Dual M.2 storage slots (NVMe + SATA/NVMe)
• Thunderbolt 4 connectivity (2 ports)
• Wi-Fi 6E and Bluetooth 5.2
• Intel vPro technology platform
• Ultra-compact 0.54L chassis

Processor Performance

Intel Core i5-1135G7:

• 4 cores, 8 threads
• Base frequency: 2.4GHz
• Max turbo frequency: 4.2GHz
• 8MB Intel Smart Cache
• 28W TDP (configurable down to 12W)
• 10nm SuperFin process technology
• Intel Turbo Boost Technology 2.0

Graphics Capabilities

Intel Iris Xe Graphics:

• 80 Execution Units
• Up to 1.3GHz graphics frequency
• Hardware-accelerated 4K video encoding/decoding
• DirectX 12, OpenGL 4.6, Vulkan support
• AV1 decode support
• Dual 4K display output
• HDR support

Memory Configuration

• 2 x SO-DIMM DDR4 slots
• Supports DDR4-3200 MHz
• Maximum 64GB (2 x 32GB)
• Dual-channel architecture
• Unbuffered, non-ECC memory
• User-installable (not included)

Storage Options

M.2 Slot 1 (Front):

• PCIe 4.0 x4 NVMe support
• M.2 2280 form factor
• Up to 2TB NVMe SSD

M.2 Slot 2 (Rear):

• PCIe 3.0 x4 or SATA III
• M.2 2280/2242 form factor
• Dual-mode compatibility
• Up to 2TB capacity

Storage Not Included – User Must Install

Thunderbolt 4 Connectivity

2 x Thunderbolt 4 Ports:

• 40Gbps bandwidth
• DisplayPort 1.4 video output
• USB4 compatible
• Power Delivery support
• Daisy-chain up to 6 devices
• External GPU (eGPU) support

Comprehensive I/O

Front Panel:

• 1 x USB 3.1 Gen 2 Type-C
• 1 x USB 3.1 Gen 2 Type-A
• 1 x 3.5mm headphone/microphone combo jack
• Power button with LED
• IR sensor window

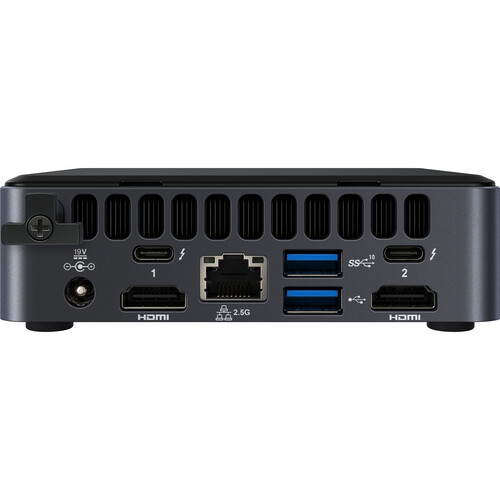

Rear Panel:

• 2 x Thunderbolt 4 (USB-C)
• 2 x USB 3.1 Gen 2 Type-A
• 2 x HDMI 2.0b
• 1 x 2.5 Gigabit Ethernet (Intel I225-LM)
• 1 x DC power input
• Kensington lock slot

Display Support

• Dual 4K displays at 60Hz
• Triple display support via Thunderbolt 4
• HDMI 2.0b outputs
• DisplayPort via Thunderbolt 4
• Extended and mirrored modes
• HDR10 support

Wireless Connectivity

Wi-Fi 6E (Intel AX210):

• 802.11ax (Wi-Fi 6E)
• Tri-band support (2.4GHz, 5GHz, 6GHz)
• Up to 2.4Gbps speeds
• MU-MIMO support
• WPA3 security

Bluetooth 5.2:

• Low Energy support
• Extended range
• Enhanced audio quality
• Multiple device connections

Intel vPro Platform

Enterprise Management:

• Intel Active Management Technology (AMT)
• Remote configuration and management
• Out-of-band management
• Hardware-based security
• Remote diagnostics and repair
• BIOS-level control

Security Features:

• Intel Hardware Shield
• Threat Detection Technology
• Boot Guard protection
• BIOS Guard
• OS Guard

Ideal Applications

Business Workstations:

• Office productivity
• CAD/design work (light)
• Financial modeling
• Data analysis
• Remote work setups

Digital Signage:

• Retail displays
• Information kiosks
• Menu boards
• Interactive displays
• Multi-screen installations

Home Office:

• Professional workspace
• Video conferencing
• Content creation
• Media production
• Software development

Media Centers:

• 4K video playback
• Streaming hub
• Home theater PC
• Media server
• Gaming (casual/cloud)

Edge Computing:

• IoT gateway
• Industrial automation
• Point-of-sale systems
• Data collection
• Surveillance systems

Why Choose NUC 11 Pro

1. Professional-grade Intel vPro platform
2. Powerful 11th Gen Core i5 performance
3. Thunderbolt 4 for future-proof connectivity
4. Dual 4K display support
5. Wi-Fi 6E for fastest wireless
6. Ultra-compact space-saving design
7. Enterprise management capabilities
8. VESA mount compatible

Form Factor & Design

• Dimensions: 117 x 112 x 42mm
• Volume: 0.54 liters
• Weight: Approximately 700g (bare kit)
• Black aluminum chassis
• Passive and active cooling
• Tool-less chassis access
• VESA mount bracket included

Cooling System

• Active cooling with blower fan
• Intelligent thermal management
• Adjustable fan profiles in BIOS
• Quiet operation modes
• Thermal sensors
• Dust-resistant design

Power & Efficiency

• 90W external power adapter included
• Wide input voltage (100-240V)
• Energy-efficient design
• Configurable TDP settings
• Sleep and hibernate modes
• ENERGY STAR certified

What’s Included in Kit

• Intel NUC 11 Pro chassis
• 90W power adapter with cord
• VESA mount bracket
• Mounting screws
• User guide
• Quick start guide

User Must Provide (Not Included):

• DDR4 SO-DIMM memory (up to 64GB)
• M.2 SSD storage (NVMe or SATA)
• Operating system

Installation & Setup

Easy Build Process:

1. Open bottom cover (tool-less)
2. Install SO-DIMM memory modules
3. Install M.2 SSD(s)
4. Close and secure cover
5. Connect power and peripherals
6. Install operating system

Operating System Support

• Windows 11 Pro (recommended)
• Windows 10 Pro
• Linux distributions (Ubuntu, Fedora, etc.)
• VMware ESXi (virtualization)
• Chrome OS Flex

Mounting Options

VESA Mount (Included):

• 75x75mm or 100x100mm VESA
• Behind monitor mounting
• Under desk mounting
• Wall mounting
• Kiosk integration

Security Features

• Kensington lock slot
• Chassis intrusion detection
• TPM 2.0 module
• Secure Boot
• BIOS password protection
• Hardware-based encryption

Management & Monitoring

Intel AMT 14.0:

• Remote power on/off
• BIOS configuration
• Operating system installation
• Hardware inventory
• Alert notifications
• KVM remote control

Expansion Capabilities

Internal:

• Dual M.2 storage
• Replaceable Wi-Fi card
• Optional second NIC

External (via Thunderbolt 4):

• External GPU enclosures
• Docking stations
• Storage arrays
• Additional displays
• Network adapters

Use Case Scenarios

Corporate Deployment:

• Standard business desktop
• Call center workstation
• Reception desk PC
• Conference room system
• Hot desk solution

Retail Environment:

• Point-of-sale terminal
• Inventory management
• Customer service kiosk
• Digital menu board
• Product information display

Education:

• Computer lab systems
• Teacher workstation
• Library terminals
• Administrative offices
• Distance learning setup

Creative Professional:

• Photo editing workstation
• Video playback system
• Audio production
• Graphic design (moderate)
• Content management

Performance Benchmarks

Processor Performance:

• Multi-core: ~5,500 PassMark score
• Single-core: ~3,000 PassMark score
• Suitable for productivity applications
• Light content creation
• Multi-tasking capable

Graphics Performance:

• 4K video playback
• Hardware acceleration
• Casual gaming
• GPU compute tasks

Warranty & Support

• Intel 3-year limited warranty
• Technical support resources
• Driver and firmware updates
• Community forums
• BIOS updates

Recommended Configurations

Basic Office:

• 8GB DDR4 memory
• 256GB NVMe SSD
• Windows 11 Pro

Power User:

• 32GB DDR4 memory
• 1TB NVMe SSD
• Windows 11 Pro

Maximum Performance:

• 64GB DDR4 memory
• 2TB NVMe SSD + 2TB secondary
• Windows 11 Pro or Linux

Compact professional performance in an ultra-small package – the Intel NUC 11 Pro Kit NUC11TNKi5 delivers 11th Gen Intel Core power, Thunderbolt 4 connectivity, Wi-Fi 6E, and Intel vPro management in a 0.54L chassis perfect for modern workspaces, digital signage, and space-constrained professional applications!
