HP BL460c G7 Intel Xeon E5649 (2.53GHz/6-core/12MB/80W) Processor Kit

HP BL460c G7 Intel Xeon E5649 (2.53GHz/6-core/12MB/80W) Processor Kit

The HP BL460c G7 Intel Xeon E5649 Processor Kit represents Hewlett Packard Enterprise’s processor upgrade solution for the ProLiant BL460c Generation 7 blade server platform, delivering enterprise-class hexa-core processing performance with Intel’s Xeon E5649 processor operating at 2.53GHz base frequency with Turbo Boost capability up to 2.93GHz, six physical cores with Hyper-Threading technology supporting twelve simultaneous execution threads, 12MB shared L3 cache for efficient data access, 80-watt thermal design power balancing performance with blade server power and cooling constraints, 5.86 GT/s QuickPath Interconnect bandwidth, DDR3-1333 memory controller support, 32nm process technology, and comprehensive Intel virtualization technologies, providing IT administrators with the essential processor upgrade path for enhancing computational capacity in virtualized environments, database workloads, enterprise applications, and multi-threaded business applications within HP BladeSystem infrastructure deployments requiring reliable, scalable, and energy-efficient server processing.

This processor kit provides the critical performance upgrade component for HP ProLiant BL460c G7 blade servers in enterprise data centers.

Key Features

• Intel Xeon E5649 processor
• 6 cores / 12 threads
• 2.53GHz base clock
• Up to 2.93GHz Turbo Boost
• 12MB L3 cache
• 80W TDP
• LGA1366 socket
• 5.86 GT/s QPI
• DDR3-1333 support
• Hyper-Threading Technology
• Intel Turbo Boost
• Virtualization technologies
• 32nm process

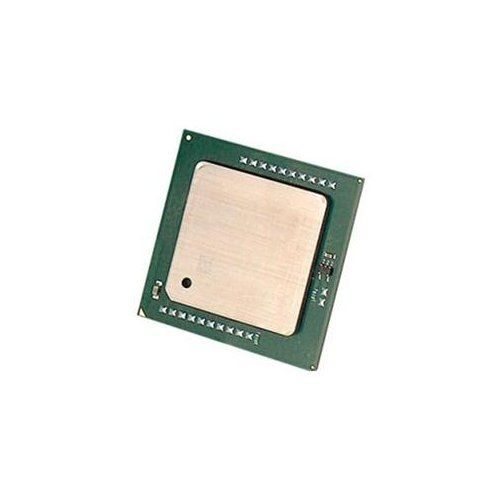

Intel Xeon E5649 Processor

Performance Specifications:

• Model: Intel Xeon E5649
• Code Name: Westmere-EP
• Manufacturing Process: 32nm
• Base Frequency: 2.53GHz
• Maximum Turbo Frequency: 2.93GHz
• Processor Cores: 6
• Threads: 12 (with HT)
• Thermal Design Power: 80W
• Socket Type: FCLGA1366 (LGA1366, Socket B)

Architecture:

• Microarchitecture: Westmere
• Instruction Set: 64-bit (x86-64)
• Instruction Set Extensions: SSE4.2, AES-NI
• Generation: Xeon 5600 series
• Launch Date: Q1 2011
• Processor Number: E5649

Six-Core Processing

Hexa-Core Performance:

• 6 physical processor cores
• Independent execution units
• Parallel processing capability
• Multi-threaded workload optimization
• Enterprise application performance
• Virtualization host capability
• Database server performance
• Multi-user environments

Core Scaling:

• Excellent multi-threaded performance
• Balanced single-thread capability
• Workload distribution
• Process isolation
• Resource allocation
• Virtual machine support

Hyper-Threading Technology

12 Simultaneous Threads:

• Intel Hyper-Threading (HT)
• 2 threads per physical core
• 12 logical processors
• Improved processor utilization
• Enhanced multi-tasking
• Better throughput
• Virtualization optimization

HT Benefits:

• Up to 30% performance improvement
• Better resource utilization
• More virtual machines per host
• Enhanced application responsiveness
• Improved thread-level parallelism

Intel Turbo Boost Technology

Dynamic Frequency Scaling:

• Base frequency: 2.53GHz
• Maximum turbo frequency: 2.93GHz
• 400MHz turbo headroom
• Automatic overclocking
• Thermal-based performance
• Power-based performance
• Opportunistic performance boost

Turbo Ratios:

• 1 core active: +2 bins (2.73GHz)
• 2 cores active: +2 bins (2.73GHz)
• 3 cores active: +1 bin (2.66GHz)
• 4 cores active: +1 bin (2.66GHz)
• 5 cores active: +1 bin (2.66GHz)
• 6 cores active: +1 bin (2.66GHz)
• Light workload optimization
• Responsive performance

12MB L3 Cache

Shared Cache Architecture:

• 12MB Level 3 cache
• Shared across all 6 cores
• Reduced memory latency
• Improved data access
• Cache coherency
• Efficient resource sharing
• Better performance consistency

Cache Hierarchy:

• L1 Cache: 32KB instruction + 32KB data per core
• L2 Cache: 256KB per core (1.5MB total)
• L3 Cache: 12MB shared
• Multi-level cache optimization
• Reduced memory bandwidth demand

80W Thermal Design Power

Energy Efficiency:

• 80-watt TDP
• Enterprise-class efficiency
• Balanced performance/power
• Blade server thermal compatibility
• Reduced cooling requirements
• Lower operating costs
• Data center power optimization

E-Series Classification:

• “E” prefix: Enterprise/Mainstream
• Balanced power consumption
• Standard voltage operation
• Enterprise reliability
• Production workload optimized
• Cost-effective performance

5.86 GT/s QuickPath Interconnect

Processor Interconnect:

• 5.86 GT/s QPI speed
• High-bandwidth processor link
• Multi-socket communication
• Coherent memory access
• Low latency interconnect
• Dual-processor support
• NUMA architecture support

QPI Benefits:

• Fast inter-processor communication
• Shared memory bandwidth
• Scalable multi-socket performance
• Enhanced throughput
• Reduced bottlenecks

DDR3-1333 Memory Support

Memory Controller:

• Integrated memory controller
• DDR3-1333 (PC3-10600) support
• Triple-channel architecture
• 21.3 GB/s memory bandwidth per socket
• Up to 192GB maximum (BL460c G7)
• ECC memory support
• Registered DIMM support

Memory Capabilities:

• 3 memory channels
• 4 DIMMs per channel (12 slots per processor)
• Supports RDIMM, LRDIMM
• Memory interleaving
• Advanced ECC
• Hot-plug memory (platform dependent)

LGA1366 Socket Compatibility

Socket Specification:

• Socket B (LGA1366)
• Land Grid Array
• 1366 contact points
• Compatible with Intel 5520 chipset
• Dual-socket capable
• Established enterprise platform
• Mature ecosystem

HP ProLiant BL460c G7 Compatibility:

• Direct drop-in upgrade
• Compatible blade system board
• Validated configuration
• HPE qualified
• Supported by HPE firmware
• Reliable operation

Intel Virtualization Technologies

VT-x (Virtualization Technology):

• Hardware-assisted virtualization
• VMware ESXi support
• Microsoft Hyper-V support
• Citrix XenServer support
• KVM support
• Enhanced VM performance
• Reduced virtualization overhead

VT-d (Directed I/O):

• I/O virtualization
• DMA remapping
• Interrupt remapping
• Direct device assignment
• Enhanced I/O performance
• Improved security

Virtualization Benefits:

• Higher VM density
• Better performance per VM
• Reduced CPU overhead
• Direct hardware access
• Enhanced security isolation

HP ProLiant BL460c G7 Platform

Target Server:

• HP ProLiant BL460c Generation 7
• Half-height blade server
• Dual-socket capable
• 12 DIMM slots per processor
• 2x 2.5″ SFF drive bays
• Mezzanine I/O expansion
• HP BladeSystem c-Class enclosure

Upgrade Path:

• Processor upgrade kit
• Single-socket to dual-socket
• Performance enhancement
• Capacity expansion
• Workload consolidation
• Virtual machine scaling

Processor Kit Components

What’s Included:

• Intel Xeon E5649 processor
• Heatsink assembly (blade-optimized)
• Thermal interface material
• Installation documentation
• HPE part number label

Installation Requirements:

• Compatible BL460c G7 blade
• HP BladeSystem enclosure
• Adequate power/cooling
• BIOS/firmware updates
• Technical expertise recommended

Ideal Workloads

Virtualization:

• VMware vSphere environments
• Microsoft Hyper-V clusters
• Virtual desktop infrastructure (VDI)
• Server consolidation
• Multiple VM hosting
• Development/test environments

Database Servers:

• Microsoft SQL Server
• Oracle Database
• MySQL/MariaDB
• PostgreSQL
• In-memory databases
• OLTP workloads
• Data warehousing

Enterprise Applications:

• ERP systems (SAP, Oracle)
• CRM platforms
• Email servers (Exchange)
• Collaboration tools
• Business intelligence
• Web applications
• Application servers

Cloud Infrastructure:

• Private cloud platforms
• IaaS deployments
• PaaS foundations
• Container hosting
• OpenStack nodes
• Cloud management

High-Performance Computing:

• Computational workloads
• Scientific applications
• Engineering simulations
• Financial modeling
• Parallel processing
• Multi-threaded applications

Performance Positioning

Xeon 5600 Series Hierarchy:

• X5600 series: High performance (95W)
• E5600 series: Enterprise mainstream (80W) ← E5649 here
• L5600 series: Low power (60W)
• Balanced performance/efficiency
• Mainstream enterprise choice
• Cost-effective solution

E5649 Positioning:

• Mid-range 6-core option
• 2.53GHz base frequency
• 80W power envelope
• Good all-around performer
• Popular enterprise choice
• Solid virtualization performance

Multi-Socket Configuration

Dual-Processor Support:

• BL460c G7 supports 2 processors
• 12 cores / 24 threads total
• 24MB total L3 cache
• Symmetric multiprocessing (SMP)
• NUMA architecture
• Expanded memory capacity (384GB max)
• Enhanced throughput

Installation Considerations

Technical Requirements:

• Qualified technician
• ESD precautions
• Thermal paste application
• Heatsink mounting
• BIOS configuration
• Firmware updates
• System testing

Best Practices:

• Update system firmware first
• Plan maintenance window
• Backup configurations
• Test before production
• Monitor temperatures
• Validate performance
• Document changes

Power & Cooling

Thermal Management:

• 80W heat dissipation
• Blade-optimized heatsink
• Enclosure cooling dependency
• Temperature monitoring
• Fan speed control
• Thermal throttling protection

Power Requirements:

• Adequate enclosure power
• Power budget planning
• Dual-processor considerations
• Load balancing
• Redundant power supplies recommended

Memory Configuration Optimization

Best Performance:

• Populate all 3 channels evenly
• Use matched DIMMs
• DDR3-1333 for full speed
• Registered DIMMs recommended
• Advanced ECC enabled
• Monitor memory errors

Part Numbers

HP Part Numbers:

• 637441-B21: Processor Kit
• 637391-B21: Complete blade with E5649
• Various FRU part numbers
• Region-specific variants

Warranty & Support

HPE Support:

• Standard HPE warranty
• Technical support available
• Firmware updates
• Driver downloads
• Documentation access
• Service parts availability

Why Choose E5649

1. Six cores / twelve threads
2. Proven Xeon 5600 architecture
3. Balanced 80W TDP
4. Turbo Boost capability
5. Large 12MB cache
6. Virtualization optimized
7. HPE validated
8. Cost-effective performance
9. Reliable enterprise platform
10. Wide software support

Enterprise processor upgrade for HP ProLiant BL460c G7 – the Intel Xeon E5649 Processor Kit delivers hexa-core processing with 2.53GHz base frequency (up to 2.93GHz Turbo Boost), Hyper-Threading supporting 12 simultaneous threads, 12MB shared L3 cache, 80W TDP, 5.86 GT/s QuickPath Interconnect, DDR3-1333 memory controller, comprehensive Intel virtualization technologies (VT-x, VT-d), and blade-optimized heatsink assembly, providing IT administrators with reliable, scalable enterprise server performance for virtualization workloads, database servers, multi-threaded business applications, and cloud infrastructure within HP BladeSystem environments requiring efficient, proven processor technology for mission-critical data center operations!
