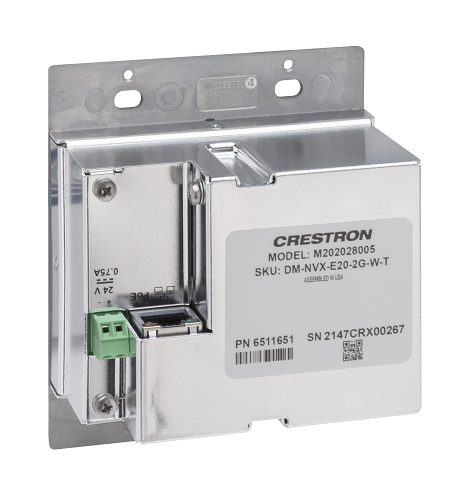

Crestron DM NVX 4K60 4:2:0 Network AV Encoder, Wall Plate, White Textured

Crestron DM NVX 4K60 4:2:0 Network AV Encoder, Wall Plate, White Textured

The Crestron DM NVX 4K60 4:2:0 Network AV Encoder represents Crestron’s industry-leading AV over IP distribution technology, enabling professional AV systems integrators and enterprise customers to distribute 4K ultra-high-definition video across standard IP network infrastructure with uncompromising quality and performance.

This sophisticated encoder eliminates the limitations of traditional point-to-point AV cabling, enabling flexible, scalable video distribution architectures that leverage existing Gigabit Ethernet networks.

Key Features

• 4K60 4:2:0 HDMI input encoding
• AV over IP via Gigabit Ethernet
• Sub-frame latency transmission
• HDR10 video support
• PoE+ powered operation
• Embedded and analog audio I/O
• Crestron control system integration
• Scalable point-to-multipoint distribution

Video Performance

4K60 Encoding:

• Resolution: Up to 3840 x 2160 (4K UHD)
• Frame rate: Up to 60Hz
• Color space: 4:2:0 chroma subsampling
• HDR10 support
• Wide color gamut
• Deep color support

Video Quality:

• Visually lossless compression
• Sub-frame latency
• Minimal compression artifacts
• Consistent quality across distance
• Network-independent quality
• Professional-grade output

HDMI Input

Input Specifications:

• 1 x HDMI input
• HDCP 2.2 compliance
• 4K60 4:2:0 maximum
• 1080p60 full compatibility
• Auto format detection
• Hot-plug detection
• EDID management

HDCP Compliance:

• HDCP 2.2 for 4K content
• HDCP 1.4 backward compatible
• Protected content distribution
• License-compliant streaming
• Secure content delivery

Network Distribution

AV over IP Technology:

• Standard Gigabit Ethernet
• No proprietary cabling required
• Unicast and multicast support
• IGMP for multicast management
• 1Gbps network requirement
• Standard network switches compatible

Stream Characteristics:

• High-quality video compression
• Predictable bandwidth usage
• Network QoS integration
• DSCP marking support
• Traffic shaping compatible
• Redundant network paths

Audio Capabilities

Embedded HDMI Audio:

• Multi-channel audio embedding
• PCM audio support
• Dolby Digital passthrough
• DTS passthrough
• Audio level monitoring
• Audio breakaway support

Analog Audio I/O:

• Balanced audio input
• Balanced audio output
• Independent audio routing
• Audio mixing capability
• Level control
• Local audio monitoring

Power Options

PoE+ Powered:

• 802.3at PoE+ standard
• Single cable installation
• Powered via network switch
• Clean no-adapter installation
• Flexible placement
• Requires PoE+ switch or injector

Local Power:

• Optional local power supply
• Non-PoE network deployment
• Flexible installation options
• Additional cost option

Crestron Integration

Control System Compatibility:

• Native Crestron control
• CIP (Crestron IP) protocol
• SIMPL Windows programming
• SIMPL# Pro support
• Crestron Studio compatible
• XiO Cloud management

Management Features:

• Web-based configuration
• XiO Cloud remote management
• Centralized device monitoring
• Firmware management
• Status reporting
• Diagnostic tools

DM NVX Ecosystem

Compatible Decoders:

• DM-NVX-350 (4K60 decoder)
• DM-NVX-351 (with HDMI output)
• DM-NVX-D30 (entry-level)
• DM-NVX-D80 (high-performance)
• Other DM NVX series decoders
• Scalable system design

Distribution Topology:

• One encoder to multiple decoders
• Many-to-many switching via software
• Virtual matrix switching
• Dynamic source routing
• Instant source switching
• No physical matrix switcher needed

XiO Cloud Management

Enterprise Management:

• Cloud-based device management
• Remote configuration
• Firmware deployment
• System monitoring
• Health status alerts
• Multi-site management
• Inventory management

Ideal Applications

Corporate Environments:

• Executive boardrooms
• Conference centers
• Training facilities
• Command and control centers
• Digital signage networks
• Video wall installations

Education:

• University lecture halls
• Classroom AV distribution
• Campus-wide video sharing
• Distance learning facilities
• Sports facilities
• Auditoriums

Hospitality:

• Hotel guest rooms
• Conference facilities
• Lobby displays
• Restaurant signage
• Entertainment venues
• Casino installations

Healthcare:

• Hospital digital signage
• Medical education
• Waiting room displays
• Conference rooms
• Telemedicine facilities

Government & Military:

• Command centers
• Briefing rooms
• Security monitoring
• Multi-room distribution
• Secure installations

Why Choose DM NVX Encoder

1. True 4K60 distribution over IP
2. Leverages existing network infrastructure
3. Virtually unlimited scalability
4. Sub-frame latency performance
5. Flexible point-to-multipoint
6. Software-defined routing matrix
7. PoE+ for clean installation
8. Industry-leading Crestron reliability

System Design Benefits

vs. Traditional Matrix Switching:

• No central matrix switcher hardware
• Unlimited expansion without hardware
• Software-defined routing
• Lower infrastructure cost at scale
• Flexible topology changes
• Geographic distribution possible

vs. HDBaseT:

• Longer distances via network
• No distance limitations (routed)
• Multicast to unlimited displays
• Standard network infrastructure
• IT-friendly installation
• Remote management via cloud

Network Requirements

Infrastructure Needed:

• Gigabit Ethernet switches
• IGMP snooping capable switches
• QoS support recommended
• Multicast routing support
• PoE+ capable switch (or injector)
• Adequate bandwidth capacity

Bandwidth Considerations:

• Per stream: ~500Mbps (4K60)
• Multicast reduces bandwidth
• Single stream to multiple displays
• Network planning required
• Switch capacity considerations

Security Features

• HDCP 2.2 content protection
• Encrypted management
• Authentication controls
• Network access control
• VLAN segmentation support
• Secure firmware updates

Physical Specifications

• Compact form factor
• Standard rack or wall mount
• LED status indicators
• All ports rear-facing
• Ventilation design
• Low profile installation

Installation Options

Mounting:

• Under-table mounting
• Wall plate installation
• Rack-mounted shelf
• Behind-display mounting
• Floor box installation
• Custom enclosures

Latency Performance

Sub-Frame Latency:

• Less than 1 frame delay
• Invisible to human perception
• Suitable for interactive applications
• Presentation-quality response
• No perceptible delay
• Professional presentation standard

EDID Management

• Automatic EDID detection
• Custom EDID programming
• EDID pass-through
• Resolution negotiation
• Multi-display EDID management
• Compatibility optimization

RS-232 & IR

Control Ports:

• RS-232 serial port
• IR emitter port
• Control of source devices
• Display control
• Bidirectional RS-232
• Custom baud rates

Use Case Scenarios

Corporate Boardroom:

• Laptop presentation distribution
• Multiple display screens
• Video conferencing integration
• Content from any seat
• Wireless presentation option
• Crestron room control

University Lecture Hall:

• Instructor presentation to displays
• Record lecture content
• Campus-wide streaming
• Remote classroom sharing
• Interactive whiteboard integration
• Student response systems

Hotel Conference Center:

• Guest laptop connectivity
• Multi-room distribution
• Digital signage content
• Event AV support
• Centralized management
• Flexible room configurations

Firmware & Updates

• Regular Crestron firmware releases
• XiO Cloud remote updates
• Security patches included
• Feature enhancements
• Centralized deployment
• Rollback capability

Warranty & Support

• Crestron limited warranty
• Crestron technical support
• Dealer/integrator support network
• Online documentation
• Training resources available
• Crestron Masters training

Professional Installation

Recommended By:

• AV system integrators
• IT infrastructure teams
• Facilities managers
• AV consultants
• Crestron certified dealers

Required Expertise:

• Professional AV installation
• Network configuration knowledge
• Crestron programming (advanced features)
• IGMP and multicast setup
• QoS configuration

What’s Included

• Crestron DM NVX 4K60 Encoder
• Mounting hardware
• Documentation
• Warranty information
• Requires professional installation

Not Included:

• PoE+ switch or injector
• HDMI cables
• Network cables
• DM NVX decoders (sold separately)
• Crestron control system (sold separately)

Professional 4K AV over IP distribution for enterprise installations – the Crestron DM NVX 4K60 4:2:0 Network AV Encoder delivers ultra-high-definition video distribution across standard network infrastructure with sub-frame latency, scalable architecture, and seamless Crestron control system integration for corporate, education, hospitality, and government deployments!
